Bluesun Complete 5kW Solar Power System - Hybrid Inverter + 14.3kWh Battery + Solar Panels
✔️ Livraison et installation gratuites
✔️ Qualité supérieure
✔️ Précommande uniquement
Complete 5kW Solar Energy System Package
✔️ Free Professional Installation
✔️ Complete System - Everything Included
✔️ Premium Quality Components
✔️ 10+ Year Battery Lifespan
✔️ Reduce Electricity Bills by 70-90%
What is it?
The Bluesun Complete 5kW Solar System Package is your all-in-one solution for energy independence. This professionally designed system includes everything needed to generate, store, and manage your own clean solar power. Perfect for homes in Mauritius wanting to reduce electricity bills, achieve backup power during CEB outages, or go completely off-grid. This is a complete, ready-to-install package - not just individual components. All parts are professionally selected to work together perfectly, eliminating guesswork and compatibility issues.

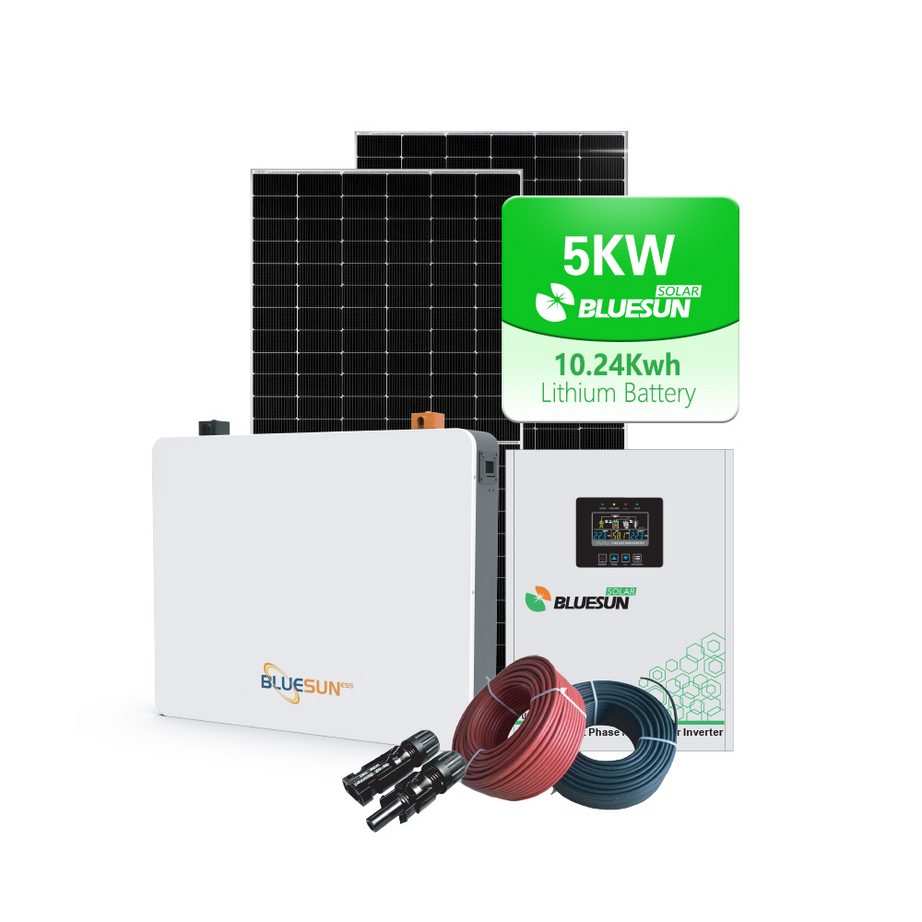

Package Includes - Everything You Need:
• 1× BSM-5500BLV-48DA 5.5kW Hybrid Solar Inverter

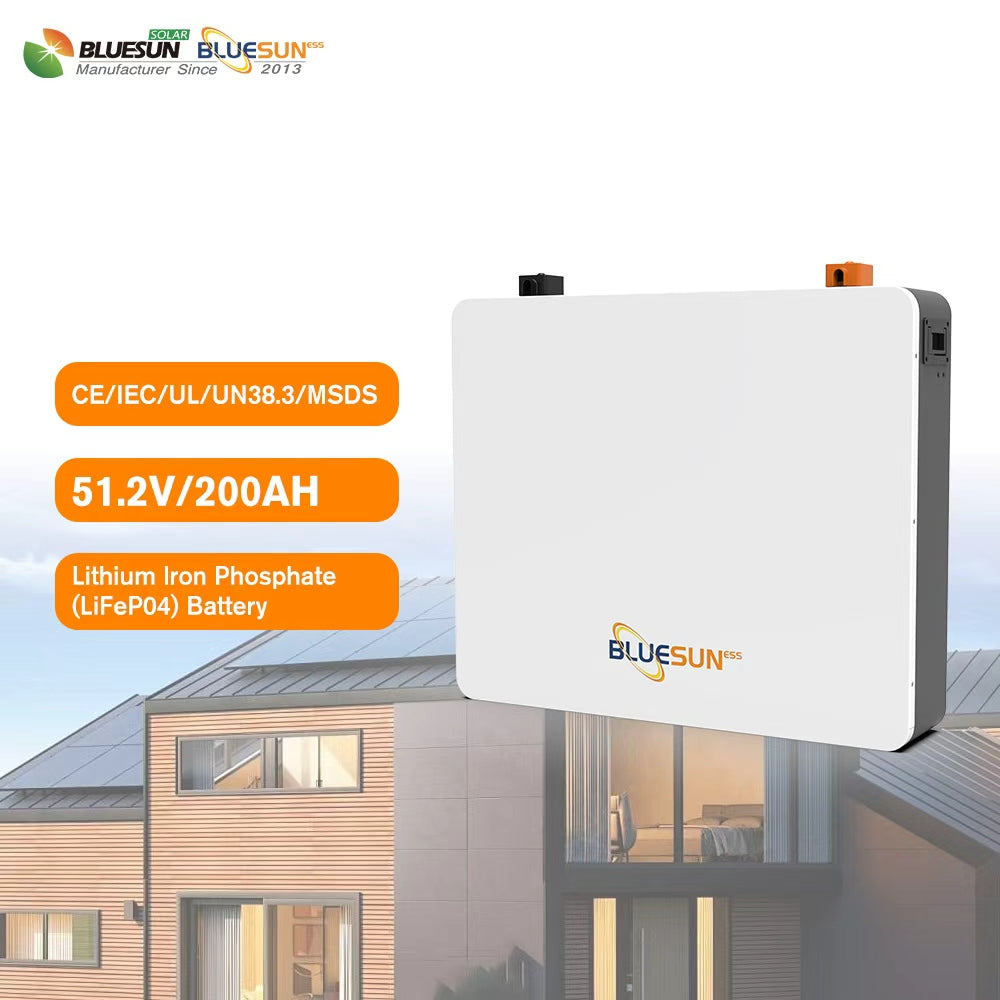

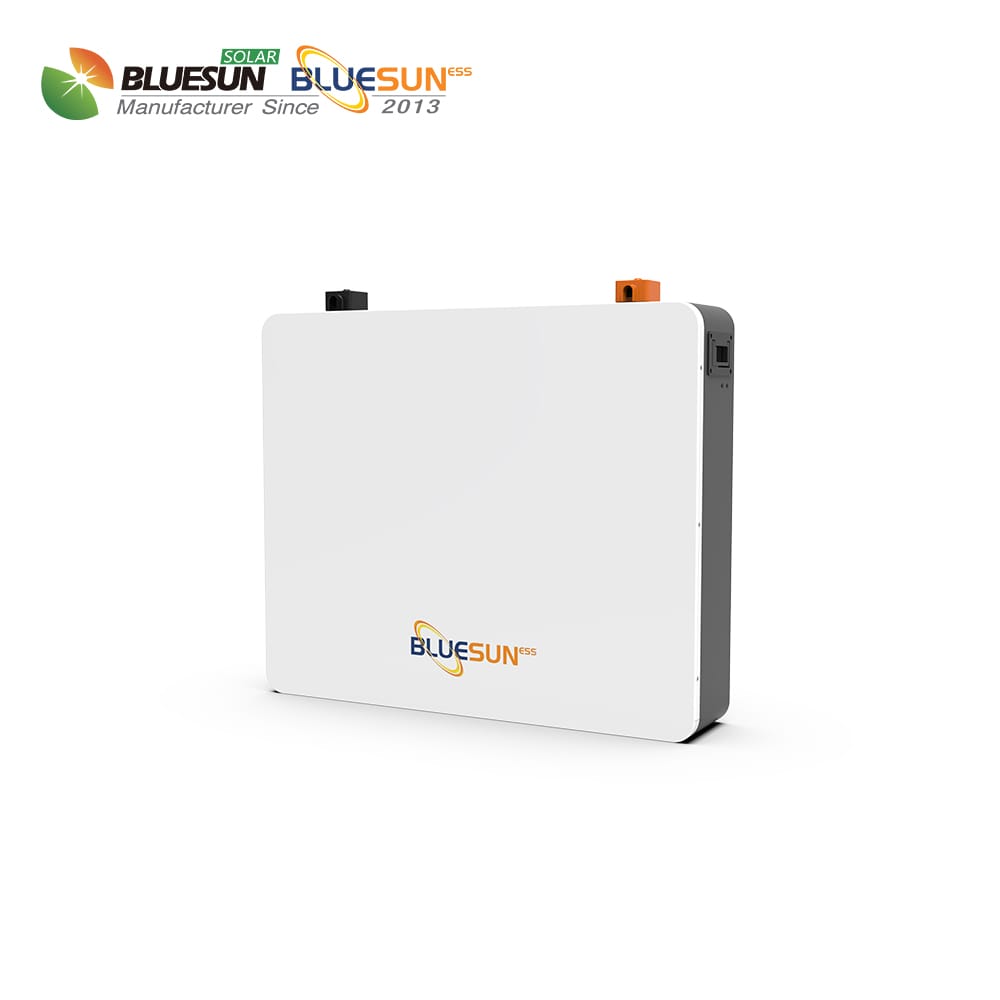

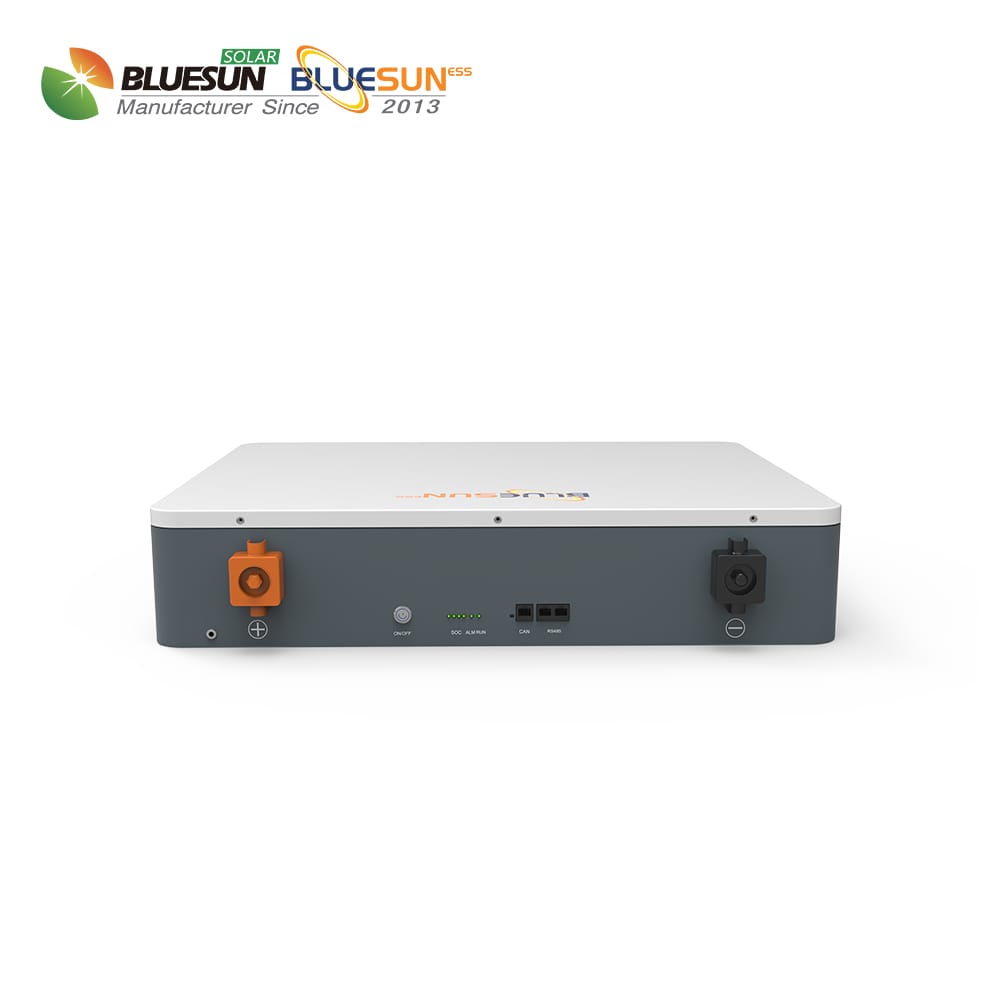

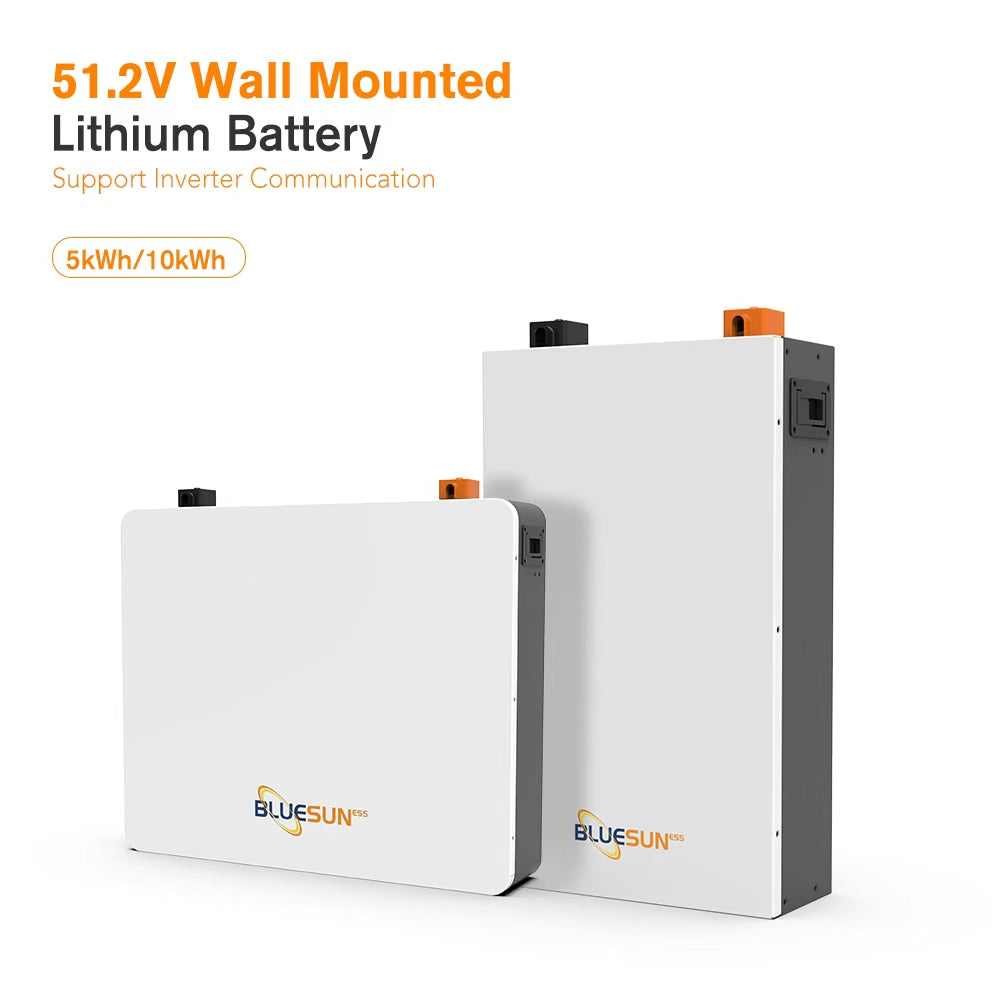

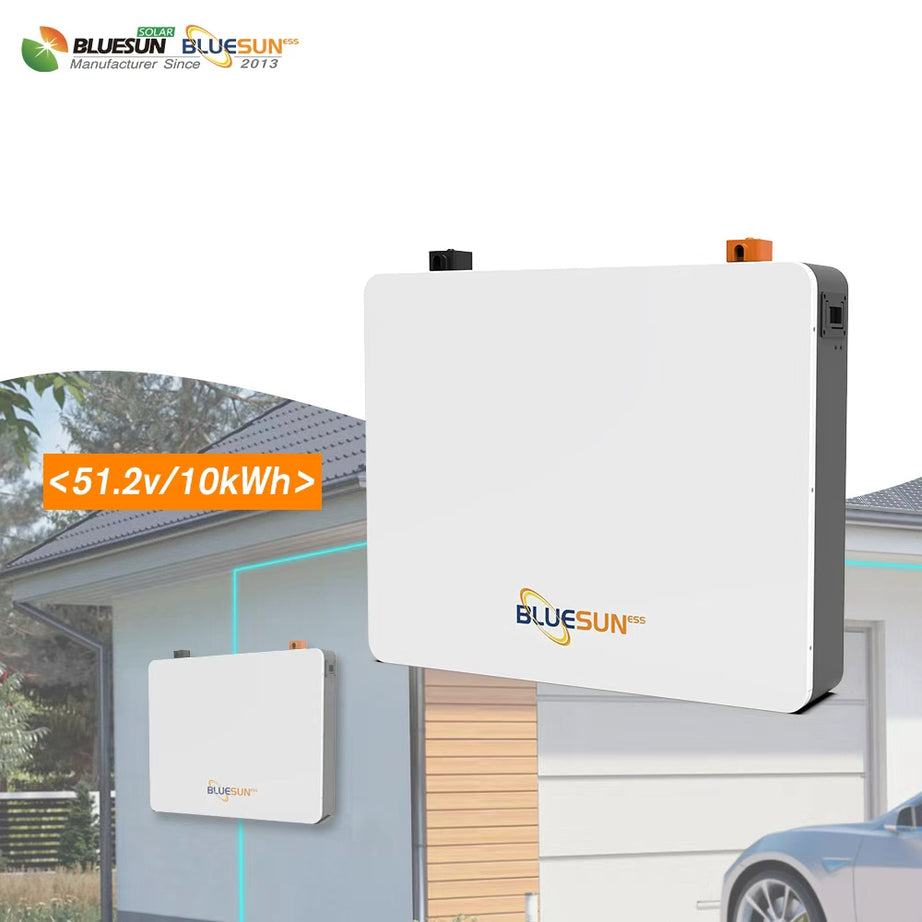

• 1× BSM48280W 14.3kWh LiFePO4 Battery Storage System
• 10-12× High-Efficiency Solar Panels (5kW total) or 50-60x Solar Tri Tiles (Premium)
• Complete mounting hardware and racking system
• All electrical cables and connectors
• DC isolator switches and safety equipment
• WiFi/Bluetooth monitoring system
• Installation materials
• Complete documentation and user manuals
Your Bluesun Complete 5kW System gives you the flexibility to choose between traditional high-efficiency panels or revolutionary solar tiles that blend beautifully with your roof.

OPTION A: Traditional Solar Panels
Type: Monocrystalline high-efficiency panels Configuration: 10-12 panels (400-500W each)
Total Power: 5,000W (5kW) Roof Space: Approximately 35-40m²
Warranty: 25 years performance guarantee
Best For: Maximum efficiency and cost-effectiveness

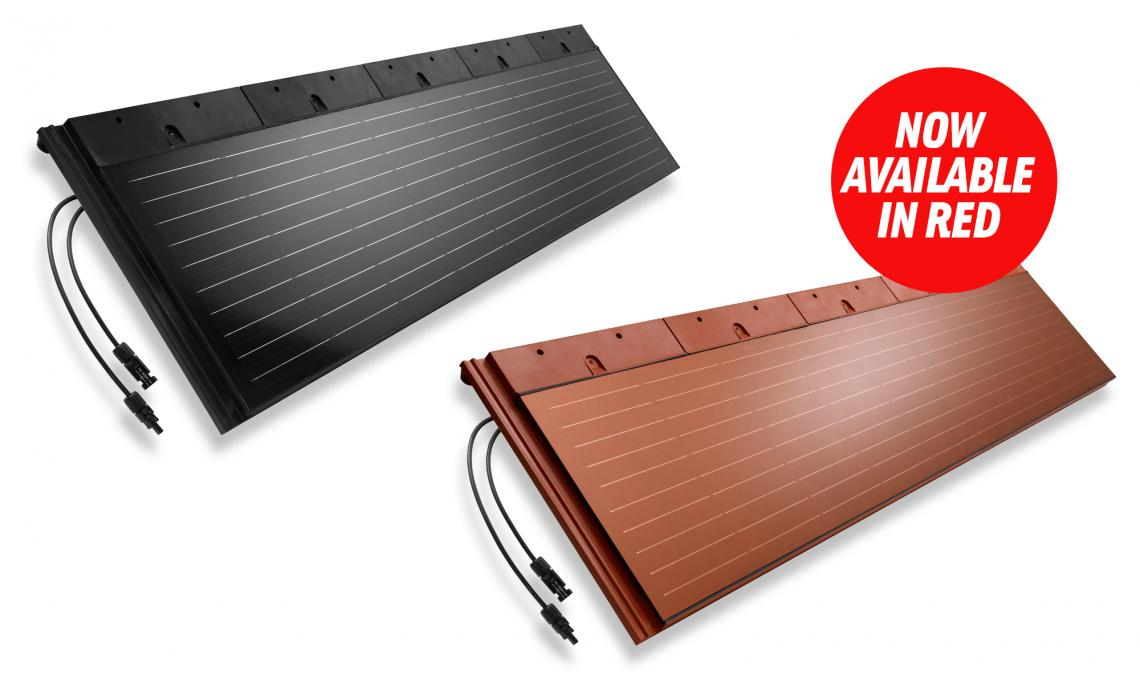

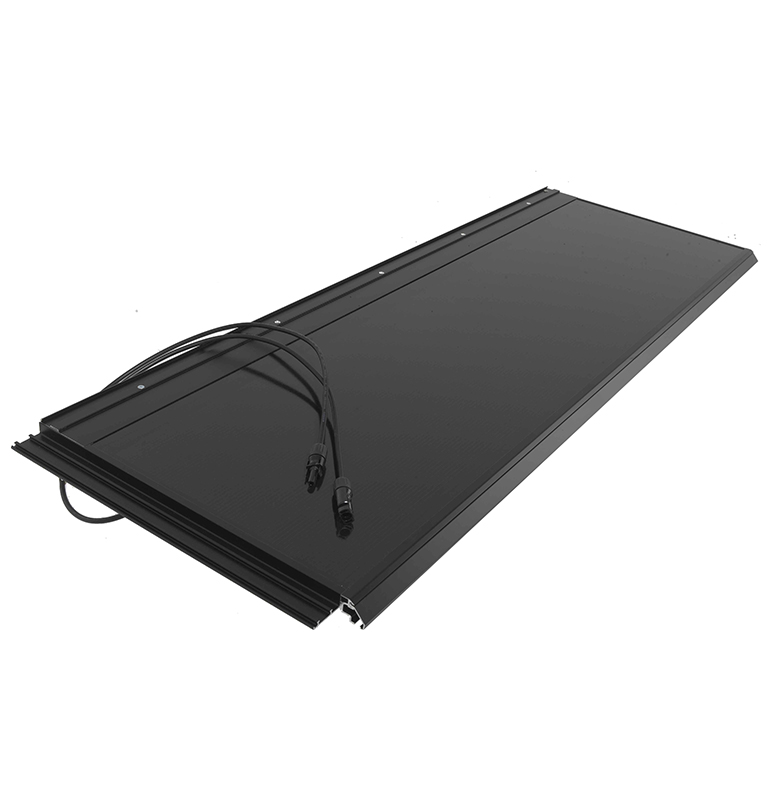

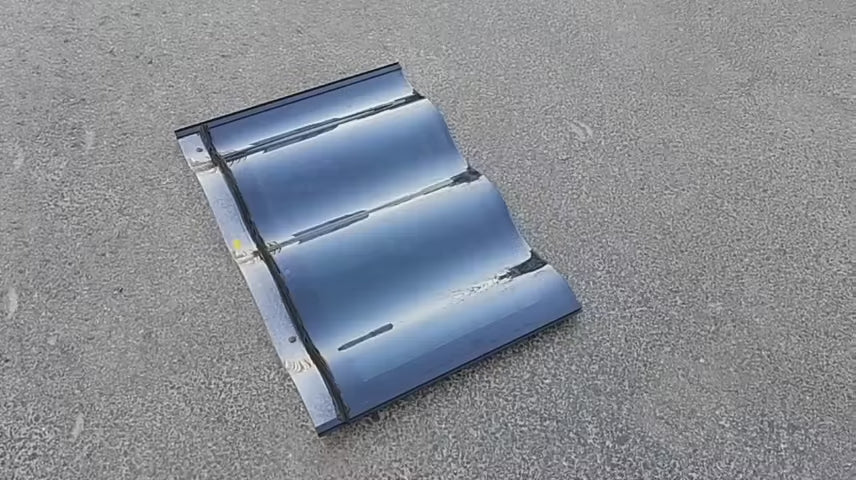

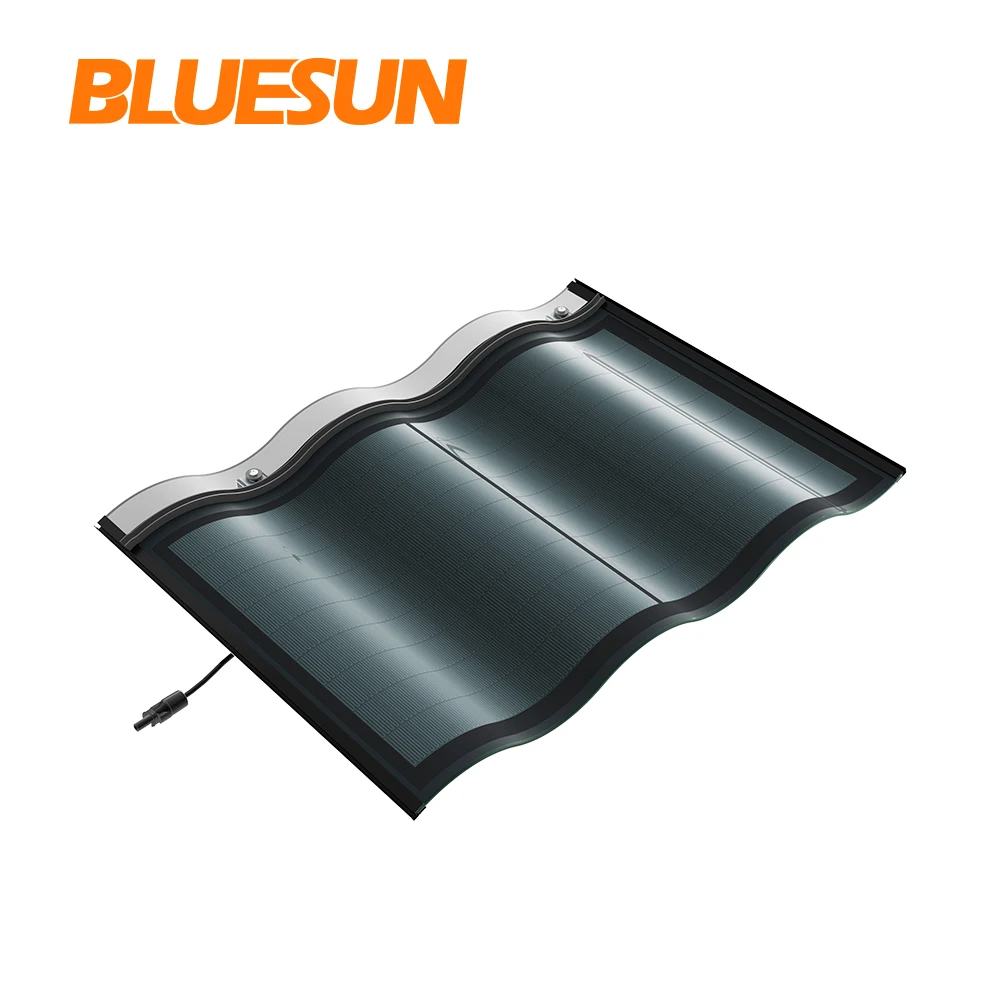

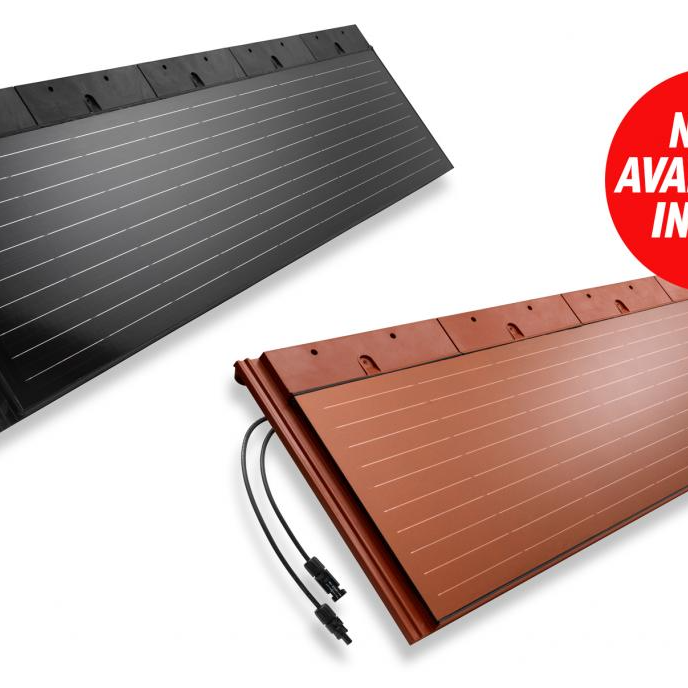

OPTION B: Solar Tiles (Tri Tile) - Premium Aesthetic Solution
🏠 Revolutionary Design That Looks Like Your Roof! Solar tiles are the premium choice for homeowners who want power generation without compromising their home's appearance. These innovative tiles look identical to premium roofing materials while generating clean electricity.
MODEL P0201 - BLACK SOLAR TILES - Electrical Performance (STC Conditions):
• Maximum Power Output: 95W per tile
• Open Circuit Voltage: 30.1V
• Short Circuit Current: 4.05A
• Voltage at Maximum Power: 26.24V
• Current at Maximum Power: 3.81A
• Efficiency: High-performance monocrystalline cells
Physical Specifications:
• Dimensions: 1,460mm × 435mm × 21mm
• Weight: 12kg per tile
• Color: Premium Black
• Front Surface: Tempered glass
• Back Surface: Tempered glass (double protection)
• Frame: Anodized aluminum alloy or composite material
• Junction Box: IP67 rated waterproof with MC4 connectors
For 5kW System: 53 black tiles required (approximately 34m² coverage)
MODEL P0202 - BRICK RED SOLAR TILES - Electrical Performance (STC Conditions):
• Maximum Power Output: 85W per tile
• Open Circuit Voltage: 28.9V
• Short Circuit Current: 3.2A
• Voltage at Maximum Power: 25.2V
• Current at Maximum Power: 2.98A
• Efficiency: High-performance monocrystalline cells
Physical Specifications:
• Dimensions: 1,460mm × 435mm × 21mm
• Weight: 12kg per tile
• Color: Traditional Brick Red
• Front Surface: Tempered glass
• Back Surface: Tempered glass (double protection)
• Frame: Anodized aluminum alloy or composite material
• Junction Box: IP67 rated waterproof with MC4 connectors
For 5kW System: 59 brick red tiles required (approximately 38m² coverage)
SOLAR TILE PERFORMANCE RATINGS
Maximum System Parameters:
• Maximum System Voltage: DC 1000V (IEC certified)
• Maximum Static Loading: 5,400 Pa (extreme wind resistance)
• Maximum Fuse Current: 25A
• Operating Temperature Range: -40°C to +85°C
Durability & Weather Resistance:
• Hailstone Impact Test: Passed 25mm hailstones at 23m/s
• Cyclone Resistance: Tested for Mauritius tropical conditions
• Fire Rating: Class A (highest safety classification)
• Application Rating: Class A
• Water Resistance: IP67 junction box protection Temperature Performance:
• NOCT (Normal Operating Cell Temperature): 45°C
• Temperature Coefficient (Power): -0.34%/°C
• Temperature Coefficient (Voltage): -0.27%/°C
• Temperature Coefficient (Current): +0.04%/°C Testing Standards:
• STC (Standard Test Conditions): 1000W/m² irradiance, AM 1.5, 25°C ambient
• NMOT: 800W/m² irradiance, 1m/s wind, 20°C ambient
• Tested according to EN 60904 standards
WHY CHOOSE SOLAR TILES?
Unmatched Aesthetics:
• Looks like premium roofing material, not solar panels
• Seamless integration with existing architecture
• Two elegant color options: Black or Brick Red
• Enhances property curb appeal and value Dual Functionality:
• Roof protection AND power generation in one
• Replaces traditional roofing material
• No bulky racking systems visible
• Clean, modern appearance
Extreme Durability:
• Double tempered glass construction (front and back)
• Cyclone-tested for Mauritius climate
• Withstands 25mm hailstones at high speed
• Fire-rated Class A for maximum safety
Perfect For:
✓ New home construction
✓ Roof replacement projects
✓ Premium residential properties
✓ Heritage or architecturally significant homes
✓ Homeowners prioritizing aesthetics
✓ Properties in upscale neighborhoods
Installation Advantage: Our certified installers are specifically trained in solar tile installation, ensuring:
• Perfect waterproofing and weather sealing
• Proper electrical connections and safety
• Seamless visual integration with your roof
• Long-term durability and performance
Same Warranty Protection: Solar tiles carry the identical 25-year performance warranty as traditional panels, backed by the same local Mauritius support team.
How does the Solar Power System work?
This system operates in 3 intelligent modes:
1. Pure Solar Energy Mode: During sunny days, the solar panels generate electricity which powers your home directly. Excess energy is stored in the 14.3kWh battery for later use.
2. Battery Backup Mode: When the sun goes down or during cloudy weather, the system automatically switches to battery power. Your home continues running normally without interruption. The 14.3kWh battery can power your entire home overnight or essential circuits for days.
3. Grid Backup Mode: If the battery runs low (rare with proper sizing), the system seamlessly switches to CEB grid power in just 10ms - you won't even notice. The system automatically recharges the battery when solar returns or during off-peak hours. DURING CEB POWER CUTS: Your home remains powered! The system instantly switches to battery backup, keeping lights, refrigerator, WiFi, TV, and other appliances running.
What Can This System Power?
DAILY ENERGY PRODUCTION (in Mauritius):
The 5kW solar array produces approximately:
• Summer (Nov-Mar): 25-30kWh per day
• Winter (May-Sep): 18-22kWh per day
• Cloudy days: 12-18kWh per day *Actual output depends on installation location, roof angle, and shading
BATTERY STORAGE CAPACITY:
The 14.3kWh battery can:
• Power typical Mauritius home overnight (8-12 hours)
• Run essential circuits for 24-48 hours during extended outages
• Store excess solar for evening use
• Keep refrigerator, lights, fans, TV running for 2-3 days
APPLIANCES YOU CAN RUN SIMULTANEOUSLY:
✓ Refrigerator (continuous)
✓ Washing machine
✓ Water pump
✓ All lights throughout home
✓ TV, WiFi router, computers
✓ Kitchen appliances
✓ Phone/tablet charging
✓ Ceiling fans (all rooms)
